Roxtec RS 密封件

Name: RS 644 AISI316 WOC
Brand: Roxtec
SKU: RS00006440021

打印

使用页面上的打印按钮，以调整优化打印布局。

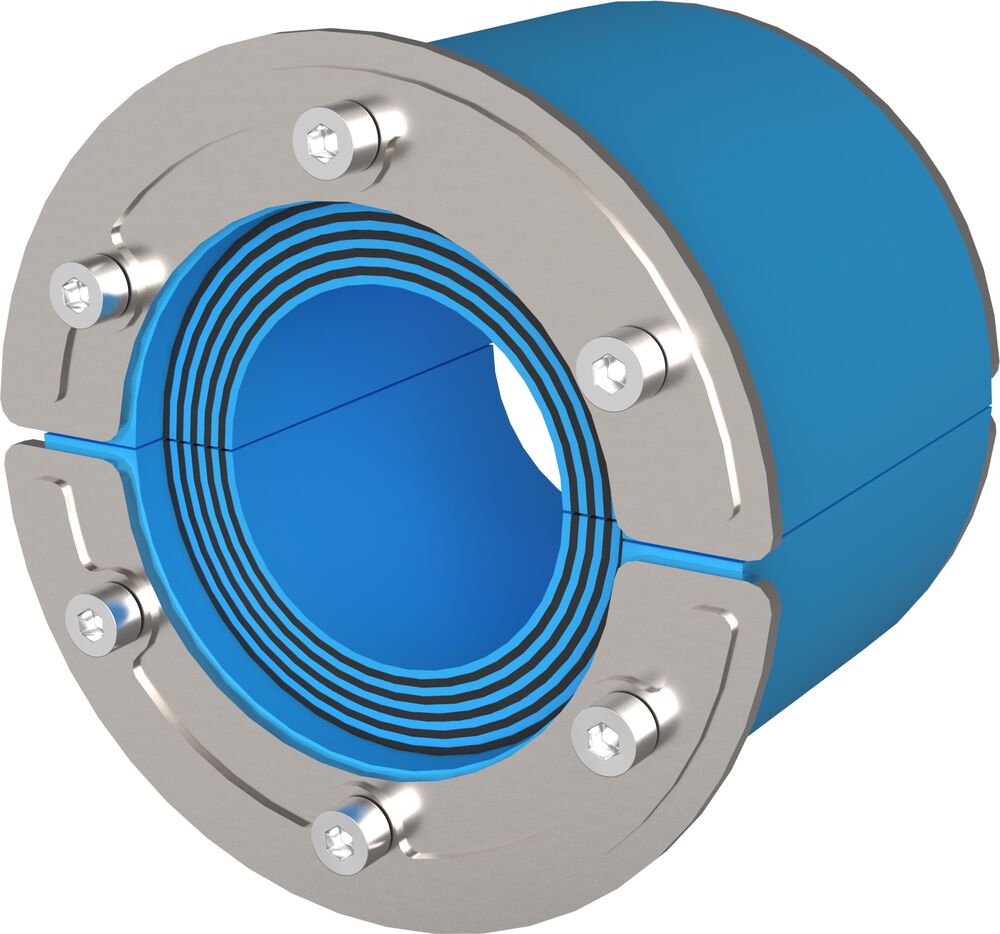

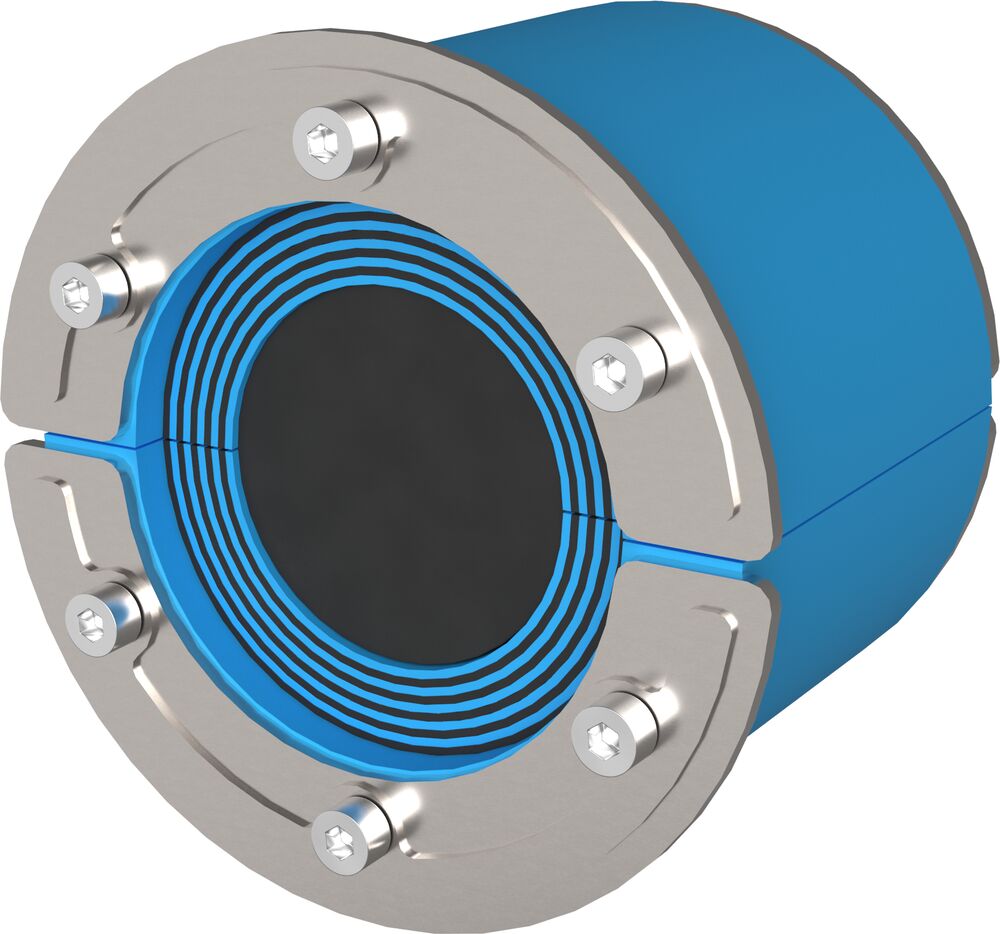

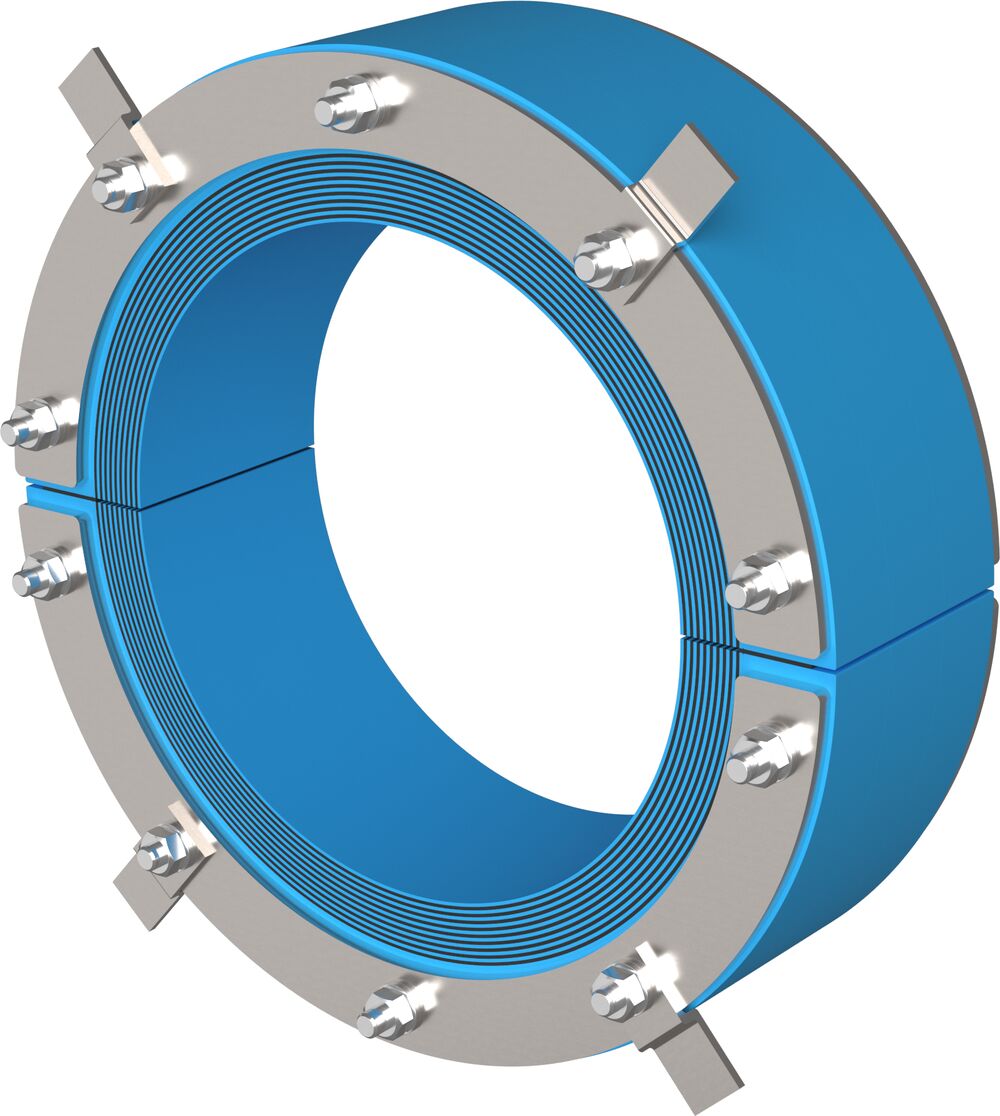

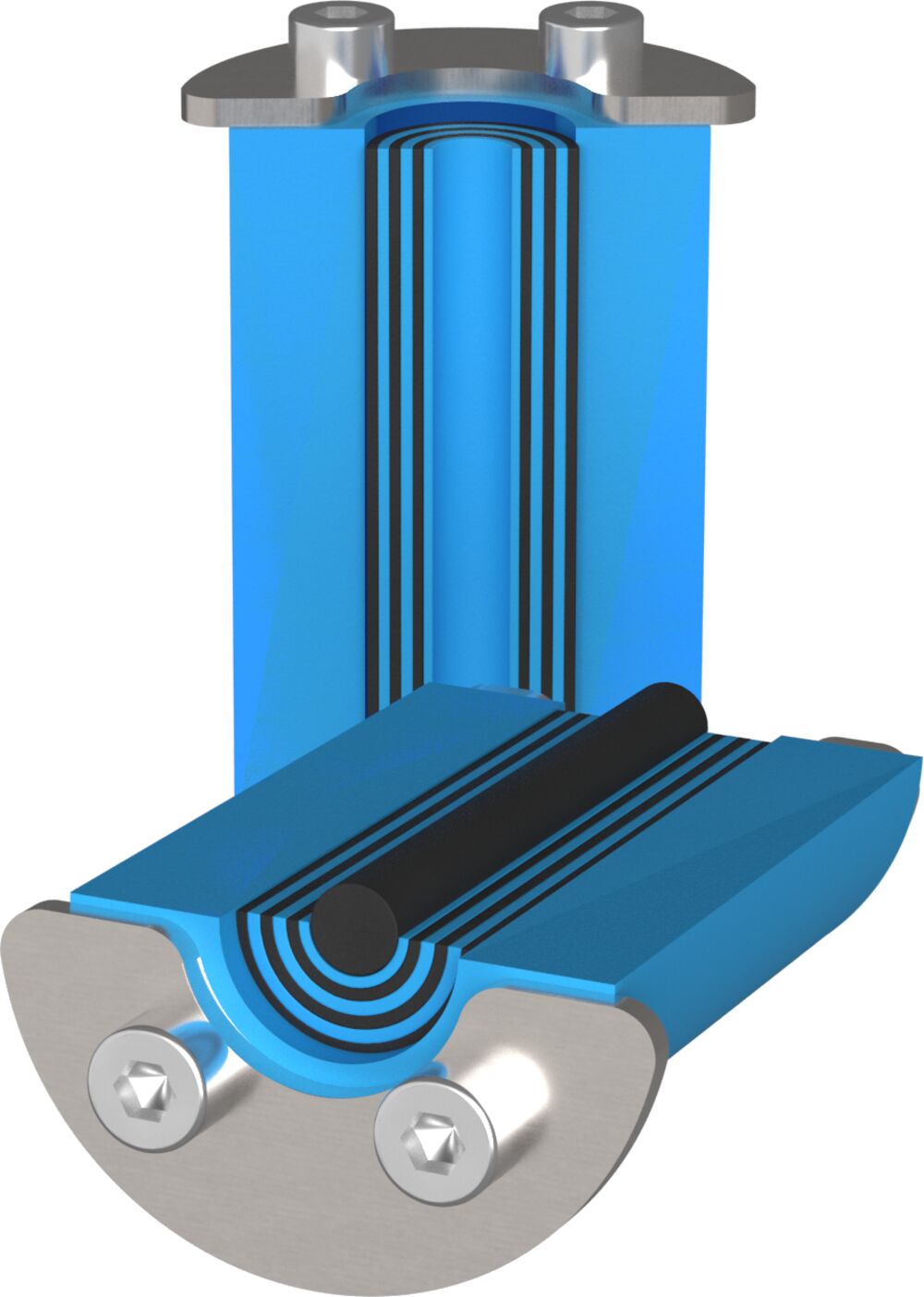

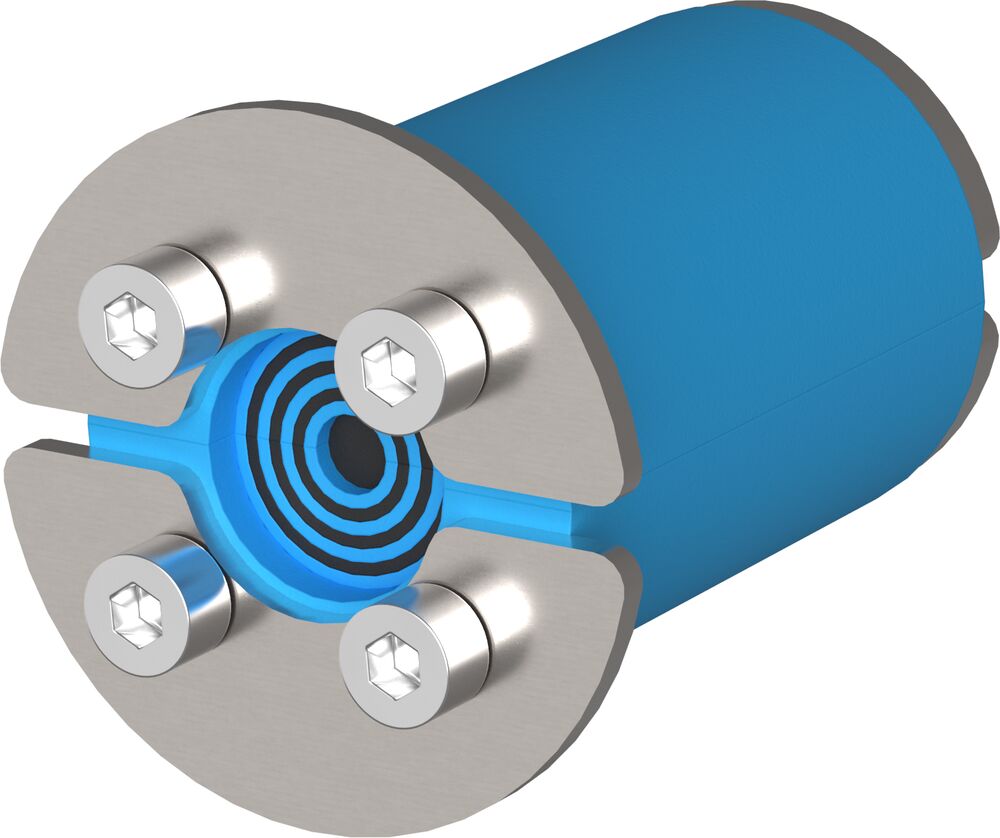

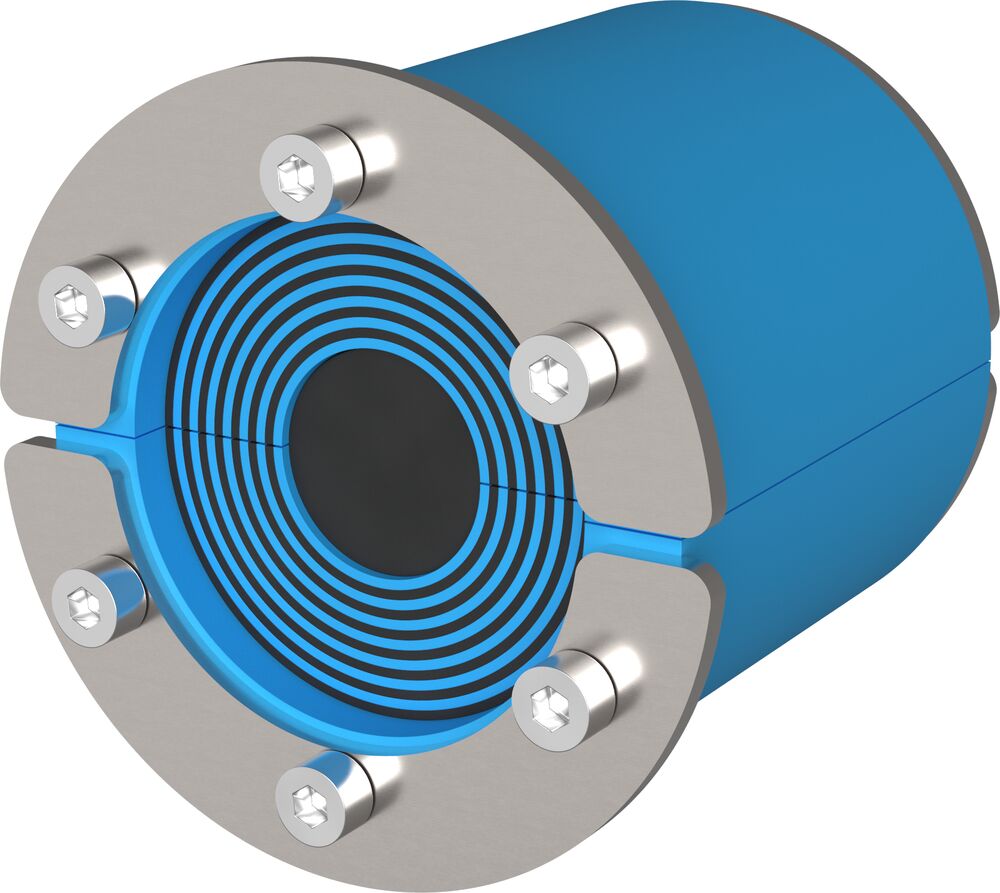

Roxtec RS 是一种圆形入口密封件，由两半可剥芯层组成，中间可适配不同规格。压紧件集成在密封件中。可安装在现有电缆或管道周围。

通过开孔膨胀连接
用于单根电缆或管道
可提供套筒配件

RS 100 AISI 316

RS 25 AISI 316

RS 100 AISI 316 WOC

RS 225 AISI 316 WOC

Roxtec RS seal

RS 75 AISI 316

信息图纸

安装说明

证书

证书
认证机构	等级	部门	电缆	管道	型式批准名称
CSA	IP tightness UL/NEMA tightness		Other	Copper Steel	1333944
BV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine		15027/D3 BV
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Stainless steel Steel		Copper Copper-Nickel Fiberglass Steel	19-HS1900390-PDA
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Stainless steel Steel	Marine	Fiberglass Other Steel	19-LD1835887-PDA
RMRS	A class fire	Steel		Bundle Copper Copper-Nickel Fiberglass Steel	19.10053.262
RMRS	A class fire	Steel	Marine		19.10054.262
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine		20-2032853-PDA
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine		20-LD1956535-PDA
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium		Copper Other Steel	20-SG1958482-PDA
RMRS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Armored Marine Shielded		20.10032.262
RMRS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium		Bundle Copper Fiberglass Plastic Steel	20.10033.262
RMRS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine Other	Fiberglass Steel	20.10098.262
IRS	A class fire	Steel	Marine	Bundle Copper Fiberglass Steel	2022TAC104
ABS	Jet Fire	Steel		Steel	21-2132106-PDA
VKF Switzerland	E fire EI fire	Concrete Lightweight concrete	Construction	Steel	22787
BV	Jet Fire	Steel	Armored Marine	Steel	40893/A1 BV
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	ABS Copper Copper-Nickel Fiberglass PB PE Plastic PP PVC PVDF Steel	73351/A0 BV
QinetiQ	A class fire Blastload Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine		AS&P/BCC/30/13/002
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Construction Telecom	Conduit Steel	C-AJ-8309
KRS	A class fire	Sandwich	Marine		CPH04189-FP001
KRS	A class fire	Steel	Marine		CPH04189-FP003
KRS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel		Bundle Copper Copper-Nickel Steel	CPH04189-FP007
State Certification Center SES of Ukraine	EI fire				DCS.0001409-22
SP Swedish National Testing and Research Institute	EI fire	Concrete Concrete or Brickwork Gypsum Lightweight concrete	Construction Other		ETA 11/0313
RISE	EI fire	Concrete Concrete or Brickwork Gypsum Lightweight concrete	Construction Other		ETA 11/0313 German translation
Instytut Techniki Bodowlanej	EI fire	Concrete Concrete or Brickwork Lightweight concrete	Construction	Copper Steel	ETA-19/0155
Factory Mutual Approval	F fire T fire	Gypsum	Other		FM Fire Stop Design 639
Factory Mutual Approval	F fire T fire	Gypsum	Other		FM Fire Stop Design 644
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine		GB23PTB00036_01
RINA	A class fire	Steel		Copper Copper-Nickel Steel	LAB287519CS/001/-2/-3/-4
RINA	A class fire	Aluminium		Copper Steel	LAB498522CS/005
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	Bundle Copper Copper-Nickel Fiberglass Steel	LR21217042SF
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel	LR2386976SF
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel	LR2387043MB
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel		Bundle Copper Copper-Nickel Fiberglass Other Steel	MEDB0000128
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine Shielded Unshielded		MEDB00002SA rev3
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine		MEDB00002SD
DNV	A class fire	Sandwich	Marine		MEDB000065Z
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium		Bundle Copper Copper-Nickel Fiberglass Steel	MEDB00006GS
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel		Bundle Copper Copper-Nickel Fiberglass Steel	MERB0000128
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine		MERB00002SA
DNV	A class fire	Sandwich	Marine		MERB000065Z
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium		Bundle Copper Copper-Nickel Fiberglass Steel	MERB00006GS
Fire Certification Company	EIT fire	Concrete Steel	Construction		RU C-SE.II68.B00365/19
Fire Certification Company	EIT fire	Concrete Steel	Construction		RU C-SE.II68.B00366/19
SP Swedish National Testing and Research Institute	EI fire	Brickwork Concrete Gypsum	Other		SC 1479-11 EN
SP Swedish National Testing and Research Institute	EI fire	Brickwork Concrete Gypsum	Other		SC1479-11
Myndigheten för samhällsskydd och beredskap	Blastload	Concrete Steel	Construction Other	Copper Steel	SRG751d-2020
Myndigheten för samhällsskydd och beredskap	Blastload	Concrete Steel	Construction Other	Copper Steel	SRG7m-2022
DNV	Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	All	Aluminium Copper Copper-Nickel Plastic Steel	TAE000000W
DNV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Marine		TAF00000D8
DNV	Jet Fire	Steel	Armored Marine Shielded	Steel	TAF00000UG
DNV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel		Fiberglass Other Steel	TAF00001NG
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine		TAF00001SH
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other		ABS Copper Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF Steel	TAF00001SJ
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete		Conduit Steel	W-J-1300
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Armored Construction		W-J-3251
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Armored Construction		W-J-3256
Underwriters Laboratories Inc.	F fire T fire	Gypsum	Armored Construction Other		W-L-3363
Underwriters Laboratories Inc.	F fire T fire	Gypsum	Armored Construction Other		W-L-3368
Underwriters Laboratories Inc.	F fire T fire	Sandwich	Construction Telecom		W-N-3001
Underwriters Laboratories Inc.	F fire T fire	Concrete		Conduit Other Steel	XHEZ.C-AJ-1218
Underwriters Laboratories Inc.	F fire T fire				XHJI7.R15556
Deutsches Institut für Bautechnik, DIBt	S fire	Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete	Armored Fiber Other Shielded Unshielded		Z-19.15-1925
Deutsches Institut für Bautechnik, DIBt	S fire	Concrete	Other	Copper Steel	Z-19.53-2347
Deutsches Institut für Bautechnik, DIBt	S fire	Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete	Armored Fiber Other Shielded Unshielded		Z-19.53-2418
Deutsches Institut für Bautechnik, DIBt	S fire	Brickwork Concrete Other	Other		Z-19.53-2635

组件文章

毫米/千克英寸/磅

所有产品部件

RS 25 AISI316

用于电缆/管道 Ø (mm) 3.6 - 12
开孔尺寸 Ø (mm) 25 - 26
重量 (kg) 0.08
产品编号 RS00100251023

dxf

下载

stp

下载

Remove from cart?

RS 31 AISI316

用于电缆/管道 Ø (mm) 4 - 17
开孔尺寸 Ø (mm) 31 - 32
重量 (kg) 0.09
产品编号 RS00100311023

dxf

下载

stp

下载

Remove from cart?

RS 43 AISI316

用于电缆/管道 Ø (mm) 4 - 23
开孔尺寸 Ø (mm) 43 - 45
重量 (kg) 0.24
产品编号 RS00100431023

dxf

下载

stp

下载

Remove from cart?

RS 50 AISI316

用于电缆/管道 Ø (mm) 8 - 30
开孔尺寸 Ø (mm) 50 - 52
重量 (kg) 0.31
产品编号 RS00100501023

dxf

下载

stp

下载

Remove from cart?

RS 68 AISI316

用于电缆/管道 Ø (mm) 26 - 48
开孔尺寸 Ø (mm) 68 - 70
重量 (kg) 0.5
产品编号 RS00100681023

dxf

下载

stp

下载

Remove from cart?

RS 75 AISI316

用于电缆/管道 Ø (mm) 24 - 54
开孔尺寸 Ø (mm) 75 - 77
重量 (kg) 0.6
产品编号 RS00100751023

dxf

下载

stp

下载

Remove from cart?

RS 100 AISI316

用于电缆/管道 Ø (mm) 48 - 70
开孔尺寸 Ø (mm) 100 - 102
重量 (kg) 1
产品编号 RS00101001023

dxf

下载

stp

下载

Remove from cart?

RS 125 AISI316

用于电缆/管道 Ø (mm) 66 - 98
开孔尺寸 Ø (mm) 125 - 127
重量 (kg) 1.6
产品编号 RS00101251023

dxf

下载

stp

下载

Remove from cart?

RS 100 AISI316 WOC

用于电缆/管道 Ø (mm) 48 - 70
开孔尺寸 Ø (mm) 100 - 102
重量 (kg) 0.8
产品编号 RS00001001023

dxf

下载

stp

下载

Remove from cart?

RS 125 AISI316 WOC

用于电缆/管道 Ø (mm) 66 - 98
开孔尺寸 Ø (mm) 125 - 127
重量 (kg) 1.4
产品编号 RS00001251023

dxf

下载

stp

下载

Remove from cart?

RS 150 AISI316 WOC

用于电缆/管道 Ø (mm) 93 - 119
开孔尺寸 Ø (mm) 150 - 152
重量 (kg) 1.6
产品编号 RS00001501023

dxf

下载

stp

下载

Remove from cart?

RS 175 AISI316 WOC

用于电缆/管道 Ø (mm) 119 - 145
开孔尺寸 Ø (mm) 175 - 177
重量 (kg) 2.3
产品编号 RS00175750021

dxf

下载

stp

下载

Remove from cart?

RS 200 AISI316 WOC

用于电缆/管道 Ø (mm) 138 - 170
开孔尺寸 Ø (mm) 200 - 203
重量 (kg) 2.7
产品编号 RS00200750021

dxf

下载

stp

下载

Remove from cart?

RS 225 AISI316 WOC

用于电缆/管道 Ø (mm) 151 - 181
开孔尺寸 Ø (mm) 225 - 228
重量 (kg) 3.2
产品编号 RS00002250021

dxf

下载

stp

下载

Remove from cart?

RS 250 AISI316 WOC

用于电缆/管道 Ø (mm) 176 - 206
开孔尺寸 Ø (mm) 250 - 253
重量 (kg) 3.3
产品编号 RS00002500021

dxf

下载

stp

下载

Remove from cart?

RS 300 AISI316 WOC

用于电缆/管道 Ø (mm) 206 - 236
开孔尺寸 Ø (mm) 300 - 303
重量 (kg) 5.7
产品编号 RS00003000021

dxf

下载

stp

下载

Remove from cart?

RS 350 AISI316 WOC

用于电缆/管道 Ø (mm) 244 - 286
开孔尺寸 Ø (mm) 350 - 353
重量 (kg) 7.2
产品编号 RS00003500021

dxf

下载

stp

下载

Remove from cart?

RS 400 AISI316 WOC

用于电缆/管道 Ø (mm) 294 - 336
开孔尺寸 Ø (mm) 400 - 403
重量 (kg) 9.4
产品编号 RS00004000021

dxf

下载

stp

下载

Remove from cart?

RS 450 AISI316 WOC

用于电缆/管道 Ø (mm) 344 - 386
开孔尺寸 Ø (mm) 450 - 453
重量 (kg) 10.7
产品编号 RS00004500021

dxf

下载

stp

下载

Remove from cart?

RS 500 AISI316 WOC

用于电缆/管道 Ø (mm) 394 - 436
开孔尺寸 Ø (mm) 500 - 503
重量 (kg) 13
产品编号 RS00005000021

dxf

下载

stp

下载

Remove from cart?

RS 550 AISI316 WOC

用于电缆/管道 Ø (mm) 444 - 486
开孔尺寸 Ø (mm) 550 - 553
重量 (kg) 14.4
产品编号 RS00005500021

dxf

下载

stp

下载

Remove from cart?

RS 600 AISI316 WOC

用于电缆/管道 Ø (mm) 494 - 536
开孔尺寸 Ø (mm) 600 - 603
重量 (kg) 15.7
产品编号 RS00006000021

dxf

下载

stp

下载

Remove from cart?

RS 644 AISI316 WOC

用于电缆/管道 Ø (mm) 538 - 580
开孔尺寸 Ø (mm) 644 - 647
重量 (kg) 17
产品编号 RS00006440021

dxf

下载

stp

下载

Remove from cart?

标题	用于电缆/管道 Ø (mm)	开孔尺寸 Ø (mm)	重量 (kg)	产品编号
RS 25 AISI316	3.6 - 12	25 - 26	0.08	RS00100251023
RS 31 AISI316	4 - 17	31 - 32	0.09	RS00100311023
RS 43 AISI316	4 - 23	43 - 45	0.24	RS00100431023
RS 50 AISI316	8 - 30	50 - 52	0.31	RS00100501023
RS 68 AISI316	26 - 48	68 - 70	0.5	RS00100681023
RS 75 AISI316	24 - 54	75 - 77	0.6	RS00100751023
RS 100 AISI316	48 - 70	100 - 102	1	RS00101001023
RS 125 AISI316	66 - 98	125 - 127	1.6	RS00101251023
RS 100 AISI316 WOC	48 - 70	100 - 102	0.8	RS00001001023
RS 125 AISI316 WOC	66 - 98	125 - 127	1.4	RS00001251023
RS 150 AISI316 WOC	93 - 119	150 - 152	1.6	RS00001501023
RS 175 AISI316 WOC	119 - 145	175 - 177	2.3	RS00175750021
RS 200 AISI316 WOC	138 - 170	200 - 203	2.7	RS00200750021
RS 225 AISI316 WOC	151 - 181	225 - 228	3.2	RS00002250021
RS 250 AISI316 WOC	176 - 206	250 - 253	3.3	RS00002500021
RS 300 AISI316 WOC	206 - 236	300 - 303	5.7	RS00003000021
RS 350 AISI316 WOC	244 - 286	350 - 353	7.2	RS00003500021
RS 400 AISI316 WOC	294 - 336	400 - 403	9.4	RS00004000021
RS 450 AISI316 WOC	344 - 386	450 - 453	10.7	RS00004500021
RS 500 AISI316 WOC	394 - 436	500 - 503	13	RS00005000021
RS 550 AISI316 WOC	444 - 486	550 - 553	14.4	RS00005500021
RS 600 AISI316 WOC	494 - 536	600 - 603	15.7	RS00006000021
RS 644 AISI316 WOC	538 - 580	644 - 647	17	RS00006440021
