Roxtec RM 模块深度为 60 毫米（2.362 英寸），可轻松适配不同尺寸的电缆和管道。 在与实心模块配合使用时，该模块可作为备用模块以满足未来的容量需求。
- 与相应的 Roxtec 组件搭配使用可形成一套完整的密封解决方案
- 用于外径为 3.0-99.0 毫米（0.118-3.898 英寸）的电缆和管道
技术图纸
证书
组件文章
RM 15
- External dimensions WxHxD (mm) 15 x 15 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 3 - 11
- Weight (kg) 0.02
- Art. No RM00100151000
RM 15w40
- External dimensions WxHxD (mm) 40 x 15 x 60
- Number of cables/pipes 3
- For cable/pipe Ø (mm) 3.5 - 10.5
- Weight (kg) 0.05
- Art. No RM00115401000
RM 20
- External dimensions WxHxD (mm) 20 x 20 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 4 - 14.5
- Weight (kg) 0.04
- Art. No RM00100201000
RM 20w40
- External dimensions WxHxD (mm) 40 x 20 x 60
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.07
- Art. No RM00120401000
RM 30
- External dimensions WxHxD (mm) 30 x 30 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.08
- Art. No RM00100301000
RM 30H90
- External dimensions WxHxD (mm) 30 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.25
- Art. No 103915
RM 40
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.14
- Art. No RM00100401000
RM 40 10-32
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.14
- Art. No RM00140101000
RM 40H80
- External dimensions WxHxD (mm) 40 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.28
- Art. No 165313
RM 60
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.32
- Art. No RM00100601000
RM 60 24-54
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 24 - 54
- Weight (kg) 0.33
- Art. No RM00160201000
RM 80
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.6
- Art. No 5RM0000003350
RM 90
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.7
- Art. No RM00100901000
RM 120
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.2
- Art. No RM00101201000
RM 60 WOC
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.26
- Art. No RM00000601000

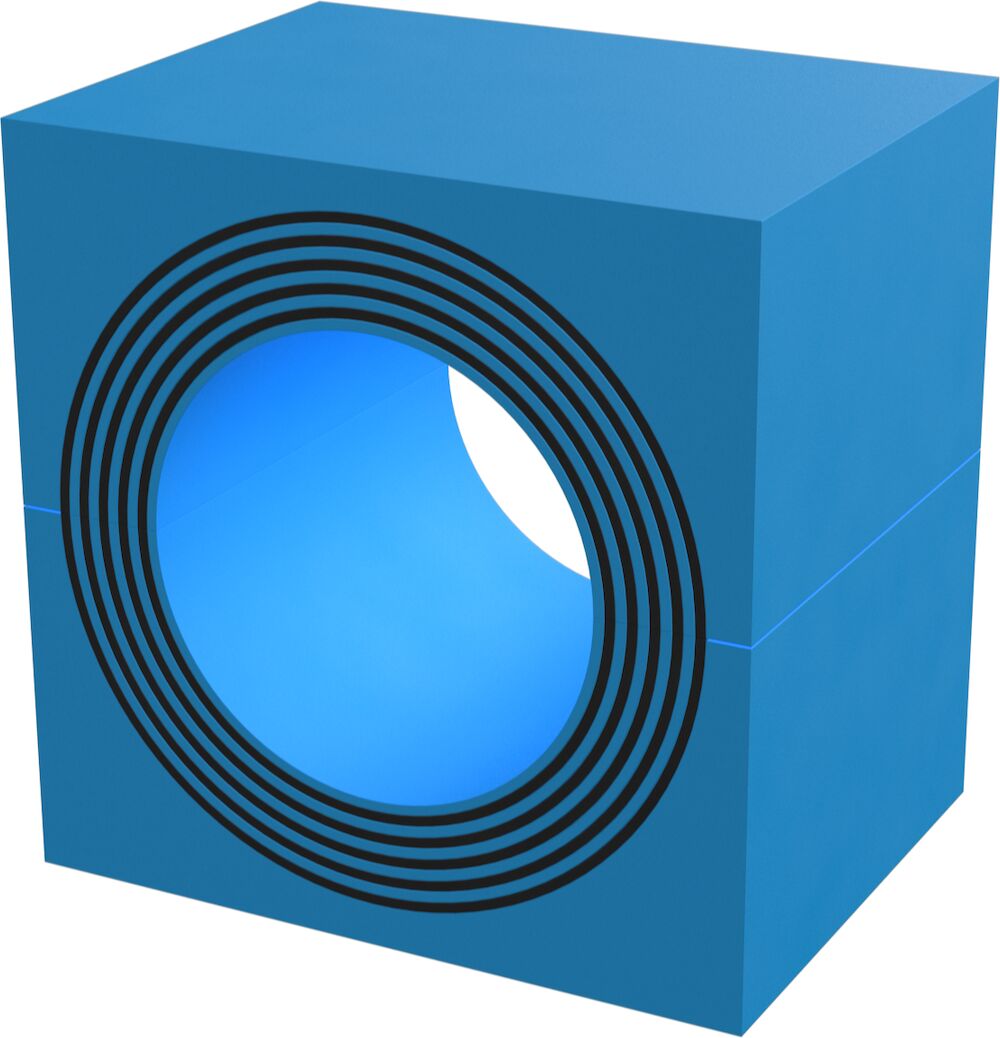

RM 80 WOC
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.4
- Art. No 5RM0000000534
RM 90 WOC
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.6
- Art. No RM00000901000
RM 120 WOC
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 0.9
- Art. No RM00001201000
| 标题 | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| RM 15 | 15 x 15 x 60 | 1 | 3 - 11 | 0.02 | RM00100151000 | |
| RM 15w40 | 40 x 15 x 60 | 3 | 3.5 - 10.5 | 0.05 | RM00115401000 | |
| RM 20 | 20 x 20 x 60 | 1 | 4 - 14.5 | 0.04 | RM00100201000 | |
| RM 20w40 | 40 x 20 x 60 | 2 | 3.5 - 16.5 | 0.07 | RM00120401000 | |
| RM 30 | 30 x 30 x 60 | 1 | 10 - 25 | 0.08 | RM00100301000 | |
| RM 30H90 | 30 x 90 x 60 | 1 | 10 - 25 | 0.25 | 103915 | |
| RM 40 | 40 x 40 x 60 | 1 | 21.5 - 34.5 | 0.14 | RM00100401000 | |
| RM 40 10-32 | 40 x 40 x 60 | 1 | 9.5 - 32.5 | 0.14 | RM00140101000 | |
| RM 40H80 | 40 x 80 x 60 | 1 | 21.5 - 34.5 | 0.28 | 165313 | |
| RM 60 | 60 x 60 x 60 | 1 | 28 - 54 | 0.32 | RM00100601000 | |
| RM 60 24-54 | 60 x 60 x 60 | 1 | 24 - 54 | 0.33 | RM00160201000 | |
| RM 80 | 80 x 80 x 60 | 1 | 48 - 71 | 0.6 | 5RM0000003350 | |
| RM 90 | 90 x 90 x 60 | 1 | 48 - 71 | 0.7 | RM00100901000 | |
| RM 120 | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.2 | RM00101201000 | |
| RM 60 WOC | 60 x 60 x 60 | 1 | 28 - 54 | 0.26 | RM00000601000 | |
| RM 80 WOC | 80 x 80 x 60 | 1 | 48 - 71 | 0.4 | 5RM0000000534 | |
| RM 90 WOC | 90 x 90 x 60 | 1 | 48 - 71 | 0.6 | RM00000901000 | |
| RM 120 WOC | 120 x 120 x 60 | 1 | 67.5 - 99 | 0.9 | RM00001201000 |
